NEWMEEN
High Speed Refrigerated Centrifuge GTR320C Laboratory Centrifuges
CENTRIFUGES
Product Overview: High Speed Table Refrigerated Centrifuge GTR320C
The High-Speed Table Refrigerated Centrifuge GTR320C is a cutting-edge laboratory instrument designed to meet the rigorous demands of modern research and clinical settings. Featuring advanced technology and exceptional performance metrics, this centrifuge is crafted to provide reliable and efficient results for various applications in separation and purification of chemical substances.
Key Specifications
- Model: GTR320C
- Max Speed: 20,000 RPM
- Max RCF: 31,115 × g
- Max Capacity: 4 × 250 ml
- Timer: 1 second to 99 hours, 59 minutes, and 59 seconds
- Revolutions/min: ±10 r/min
- Temperature Range: -20°C to 40°C
- Temperature Accuracy: ±1.0°C
- Voltage: AC 220 ± 22V, 50Hz, 15A
- Power: 1.2 KW
- Noise Level: ≤ 60 dB (A)
- Size: 680 × 660 × 400 (mm)
- Net Weight: 108 kg
- Rotor Identification: Automatic
Applications
The GTR320C Centrifuge is engineered to facilitate the efficient separation and purification of various chemical substances, supporting an array of applications in laboratories across many disciplines, including:
- Pharmaceutical Research: Accelerating drug development processes by isolating and extracting active ingredients effectively.
- Biotechnology: Purifying biological samples for further analysis, including DNA and RNA extraction.
- Clinical Diagnostics: Used in hospitals and clinics for processing blood and other bodily fluids for diagnostic testing.
- Chemical Engineering: Separation of components in chemical processes, beneficial for experimental trials and quality control.
- Food Technology: Analysis of food samples and the separation of healthy ingredients from complex matrices.
Product Advantages

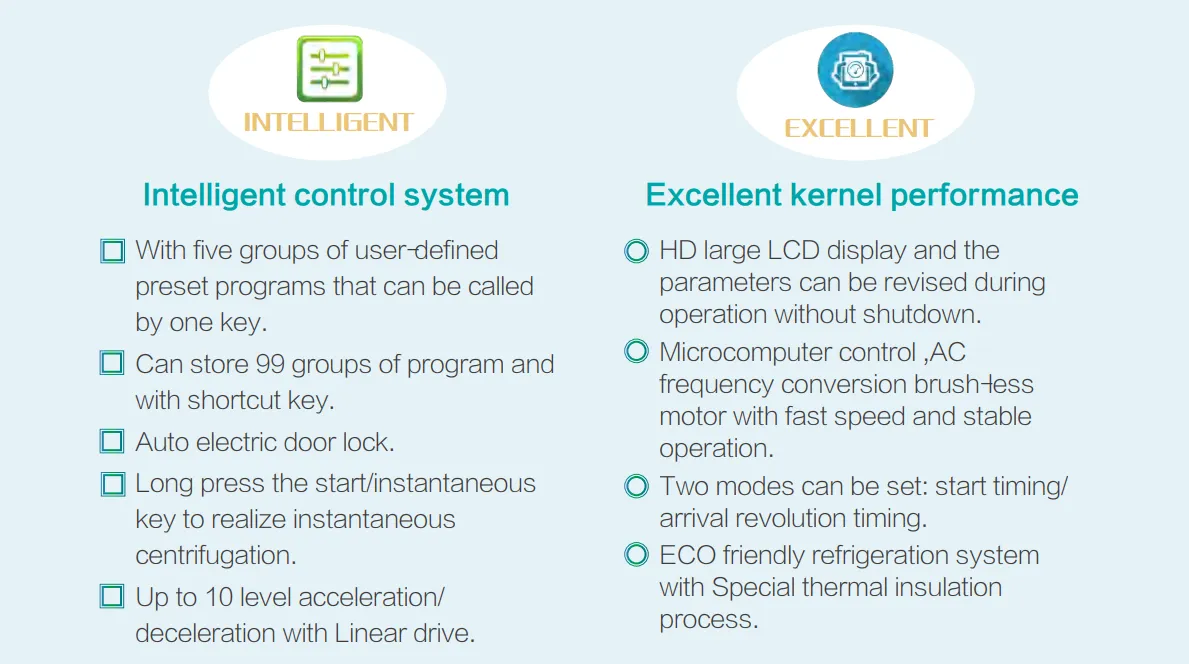

User-Friendly Features
The GTR320C is designed with user experience in mind:
Five User-Defined Preset Programs: The system allows for the storage and retrieval of up to 99 customizable programs, enabling quick and efficient experiment setup. Users can access frequently used settings with a single press of a shortcut key.
Instantaneous Centrifugation: The centrifuge supports a feature for instantaneous centrifugation; users can long-press the start/instantaneous button to begin operation quickly, perfect for time-sensitive applications.
Linear Drive Technology: This centrifuge boasts up to 10 levels of acceleration and deceleration, allowing for precise control over the process, minimizing sample disruption, and enhancing efficiency.

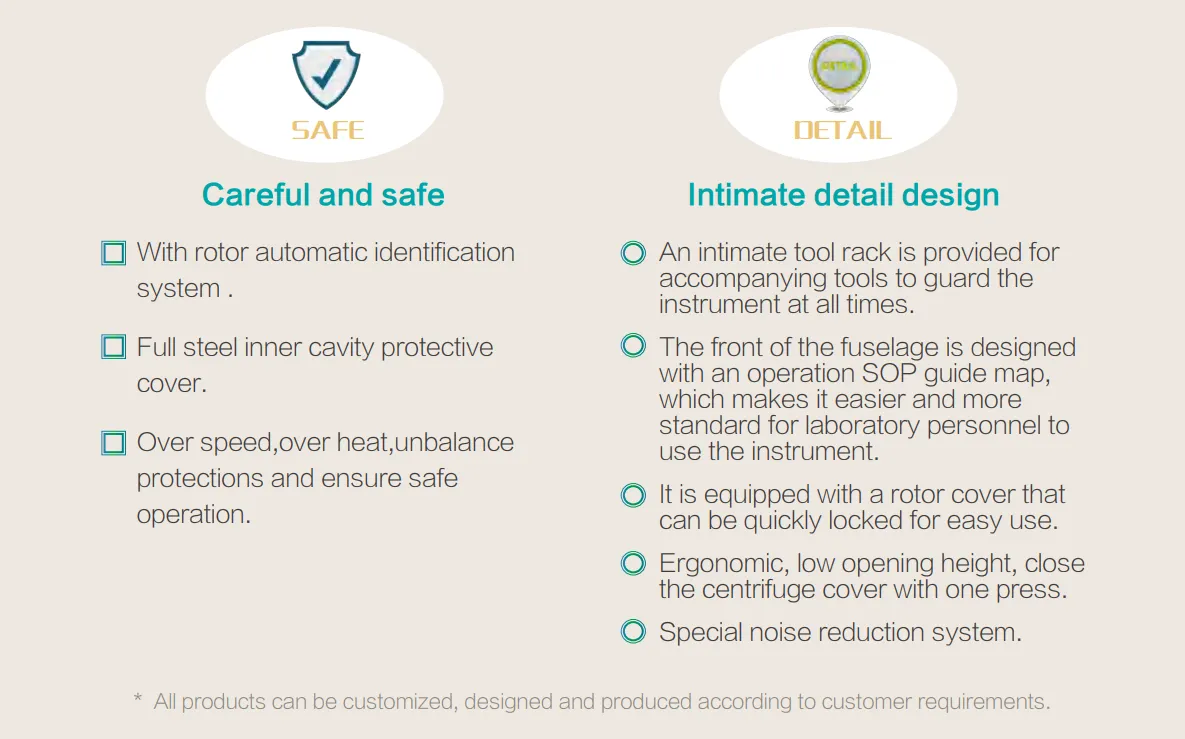

Enhanced Safety Mechanisms
Safety is a critical concern in laboratory environments. The GTR320C incorporates several safety features:
Auto Electric Door Lock: This automatic locking mechanism prevents accidental opening during the centrifuge cycle, ensuring user safety and sample integrity.
Comprehensive Protections: The centrifuge includes over-speed protection, over-heat alarms, and unbalance protections, allowing it to automatically detect and mitigate potential operational risks. It provides peace of mind to users by ensuring safe and reliable operation.
Full Steel Inner Cavity: The protective cover made from full steel reinforces the centrifuge's durability while safeguarding users from potential hazards.
High Performance and Efficiency
The GTR320C delivers exceptional performance with its high maximum speed and RCF capacity, allowing users to achieve rapid results. The advanced cooling system ensures that temperature-sensitive samples can be processed without compromising their integrity.
Robust Max Capacity: With a maximum capacity of 4 x 250 mL, it can accommodate various sample types, making it versatile for multiple lab applications.
Quiet Operation: The noise level is maintained at ≤ 60 dB (A), which creates a comfortable working environment without distracting background noise.
Technical Details
Design and Build
The GTR320C is designed with the dimensions of 680 x 660 x 400 mm, making it compact enough for standard laboratory benches while ensuring sufficient workspace for operational maneuvers. With a net weight of 108 kg, it is sturdy and stable during operation, reducing vibrations that could affect sample results.
Power Specifications
Designed to operate on a 220V AC supply with an adaptive range of ±22V, the GTR320C ensures versatility in different laboratory settings. Operating at a frequency of 50Hz and consuming 1.2KW of power, it balances energy efficiency with high performance.
Temperature Control
The temperature range of -20°C to 40°C, coupled with a precision of ±1.0°C, allows the centrifuge to perform tasks that require temperature-specific processing, such as working with heat-sensitive materials.
Conclusion
The High-Speed Table Refrigerated Centrifuge GTR320C is an indispensable tool for laboratories engaged in chemical, biological, and clinical research. Its advanced features, robust safety mechanisms, and ability to efficiently handle a variety of samples make it a top choice for professionals seeking precision, reliability, and convenience in separation and purification processes.
In an era where time and results are paramount, the GTR320C stands out as a reliable partner in enhancing laboratory efficiency and productivity. Whether it's accelerating drug development or enabling intricate biological analyses, this centrifuge is engineered to empower scientists and researchers as they push the boundaries of discovery and innovation.
