NEWMEEN
Low Speed Refrigerated Centrifuge DTR46C Laboratory Table Centrifuges
CENTRIFUGES
Product Overview: Low Speed Table Refrigerated Centrifuge DTR46C
The Low Speed Table Refrigerated Centrifuge DTR46C represents a sophisticated solution for a wide range of laboratory applications, tailored for industries such as biochemistry, medical and health services, food safety, scientific research, and education. Designed to meet rigorous laboratory requirements, the DTR46C is engineered to provide reliability, precision, and innovative features that optimize workflow and enhance user experience.
Basic Product Information
- Model: DTR46C
- Max Speed: 6500 rpm
- Max RCF: 5952 × g
- Max Capacity: 4 × 750 ml
- Timer: 1 s – 99 h 59 min 59 s
- Revolutions/min Stability: ±10 rpm
- Temperature Range: -20°C to 40°C
- Temperature Accuracy: ±1.0°C
- Operating Voltage: AC 220 ± 22V, 50 Hz, 15A
- Power Consumption: 1.5 kW
- Noise Level: ≤ 60 dB(A)
- Dimensions: 730 × 660 × 400 mm
- Net Weight: 118 kg
- Rotor Feature: Automatic identification of rotors
* All products can be customized, designed and produced according to customer requirements.
Key Features and Functionalities
Advanced Speed and RCF Performance: The DTR46C operates at a maximum speed of 6500 rpm, generating a maximum relative centrifugal force (RCF) of up to 5952 × g. This enables effective separation of samples, ensuring efficient centrifugation processes suited for various laboratory tasks.
High Capacity and Versatility: With a maximum capacity of 4 × 750 ml, the DTR46C is ideal for high-throughput applications. Its ability to handle different tube sizes and volumes makes it a versatile tool in both small-scale and larger laboratory operations.
Temperature Control Features: The centrifuge features a temperature range of -20°C to 40°C, providing the flexibility to accommodate a variety of samples that may require specific temperature conditions during centrifugation. The temperature accuracy of ±1.0°C ensures that sensitive samples are processed under optimal conditions, minimizing the risk of thermal degradation.
User-Friendly Timer and Controls: The integrated timer allows for precise control over centrifugation time, ranging from 1 second to nearly 100 hours. Laboratory personnel can seamlessly adjust the settings to match the specific requirements of the sample being processed.
Quiet Operation: Designed with a special noise reduction system, the DTR46C operates at a noise level of ≤ 60 dB(A). This is particularly beneficial for laboratory environments where noise pollution can hinder concentration and communication.

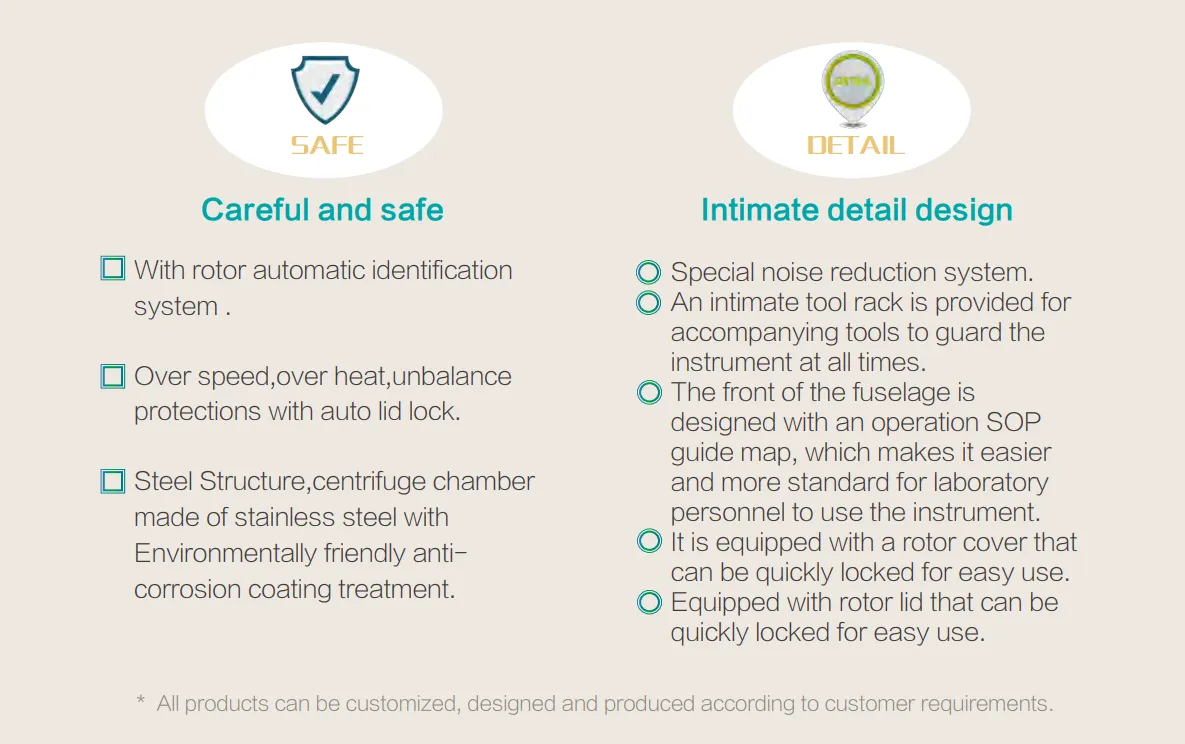

Ergonomic and Practical Design: The centrifuge features a thoughtfully designed interface that includes an operation Standard Operating Procedure (SOP) guide map printed on the front of the fuselage. This visual aid assists laboratory staff in operating the centrifuge efficiently and according to best practices.
Rotor Safety and Accessibility: The DTR46C is equipped with a rotor cover that can be quickly locked for secured operation. This safety feature ensures that samples remain contained during centrifugation, thereby protecting users and preserving sample integrity.
Tool Rack Integration: An intimate tool rack comes standard with the centrifuge, accommodating essential tools and accessories. This built-in storage solution helps keep the work area organized and ensures that tools are readily accessible for maintenance and operation.
Advanced Speed and RCF Performance: The DTR46C operates at a maximum speed of 6500 rpm, generating a maximum relative centrifugal force (RCF) of up to 5952 × g. This enables effective separation of samples, ensuring efficient centrifugation processes suited for various laboratory tasks.
High Capacity and Versatility: With a maximum capacity of 4 × 750 ml, the DTR46C is ideal for high-throughput applications. Its ability to handle different tube sizes and volumes makes it a versatile tool in both small-scale and larger laboratory operations.
Temperature Control Features: The centrifuge features a temperature range of -20°C to 40°C, providing the flexibility to accommodate a variety of samples that may require specific temperature conditions during centrifugation. The temperature accuracy of ±1.0°C ensures that sensitive samples are processed under optimal conditions, minimizing the risk of thermal degradation.
User-Friendly Timer and Controls: The integrated timer allows for precise control over centrifugation time, ranging from 1 second to nearly 100 hours. Laboratory personnel can seamlessly adjust the settings to match the specific requirements of the sample being processed.
Quiet Operation: Designed with a special noise reduction system, the DTR46C operates at a noise level of ≤ 60 dB(A). This is particularly beneficial for laboratory environments where noise pollution can hinder concentration and communication.
Ergonomic and Practical Design: The centrifuge features a thoughtfully designed interface that includes an operation Standard Operating Procedure (SOP) guide map printed on the front of the fuselage. This visual aid assists laboratory staff in operating the centrifuge efficiently and according to best practices.
Rotor Safety and Accessibility: The DTR46C is equipped with a rotor cover that can be quickly locked for secured operation. This safety feature ensures that samples remain contained during centrifugation, thereby protecting users and preserving sample integrity.
Tool Rack Integration: An intimate tool rack comes standard with the centrifuge, accommodating essential tools and accessories. This built-in storage solution helps keep the work area organized and ensures that tools are readily accessible for maintenance and operation.
Applications
The Low Speed Table Refrigerated Centrifuge DTR46C is primarily applied in the following scenarios:
- Biochemical Products: For the separation of cellular components, proteins, and other biomolecules.
- Scientific Research: Facilitating research in molecular biology and various areas of life sciences where centrifugation is crucial.
- Food Safety Testing: Assisting in the preparation of samples for bacteriological analysis or other food safety assessments.
- Medical and Health Services: Essential for blood component separation, diagnostics, and other clinical laboratory applications.
- Blood Stations and Hospitals: Widely used for processing blood samples, ensuring safe and efficient separation of plasma and cellular components.
- Medical Technology and Education: A valuable educational tool for training future professionals in laboratory techniques.
Product Advantages
Effective Noise Reduction: The special noise reduction system makes the DTR46C particularly suited for environments where noise levels need to be minimized, allowing for a more pleasant working atmosphere.
Enhanced User Experience: The operation SOP guide map simplifies the learning curve for new users, enabling them to operate the centrifuge effectively with minimal training.
Safety Locks: The quick-locking rotor lid increases safety during high-speed operations, ensuring that users are protected against accidental opening.
Robust Construction: The centrifuge's construction is designed to withstand the rigors of daily laboratory use, making it a durable asset for any laboratory setting.
Precise Temperature Management: The capability to maintain consistent temperatures within a ±1.0°C range is critical for working with temperature-sensitive samples, enabling reliable experimental outcomes.
Effective Noise Reduction: The special noise reduction system makes the DTR46C particularly suited for environments where noise levels need to be minimized, allowing for a more pleasant working atmosphere.
Enhanced User Experience: The operation SOP guide map simplifies the learning curve for new users, enabling them to operate the centrifuge effectively with minimal training.
Safety Locks: The quick-locking rotor lid increases safety during high-speed operations, ensuring that users are protected against accidental opening.
Robust Construction: The centrifuge's construction is designed to withstand the rigors of daily laboratory use, making it a durable asset for any laboratory setting.
Precise Temperature Management: The capability to maintain consistent temperatures within a ±1.0°C range is critical for working with temperature-sensitive samples, enabling reliable experimental outcomes.
Summary
The Low Speed Table Refrigerated Centrifuge DTR46C embodies a versatile, reliable, and efficient tool for laboratory professionals across various fields. Its combination of advanced technology, user-centered design, and robust performance makes it an essential instrument for any laboratory environment focused on achieving high-quality results. With its diverse applications ranging from biochemical research to clinical use, the DTR46C stands out as a cornerstone in modern laboratory equipment. Investing in the DTR46C not only enhances operational efficiency but also fosters innovation and accuracy in research and clinical diagnostics.
