NEWMEEN
Low Speed Table Lab Centrifuge DT45C
CENTRIFUGES
Product Overview
Product Name: Low Speed Table Centrifuge DT45C
Model: DT45C
The DT45C is a state-of-the-art low-speed table centrifuge ideal for various laboratory applications. It is designed with cutting-edge technology to ensure efficiency, accuracy, and reliability in sample preparation processes. Whether for chromatographic analysis, spectroscopic analysis, or any other analytical study, the DT45C provides the utmost convenience and user-friendliness, making it an essential tool for laboratories in research facilities, universities, and medical laboratories.
Key Specifications

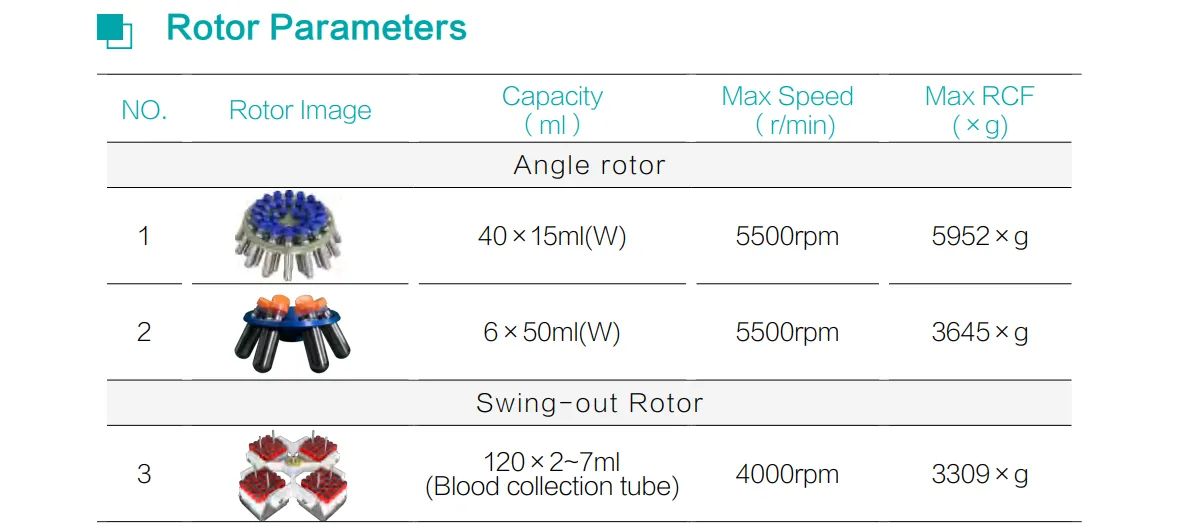

- Max Speed: 5500 rpm
- Max RCF (Relative Centrifugal Force): 5952 × g

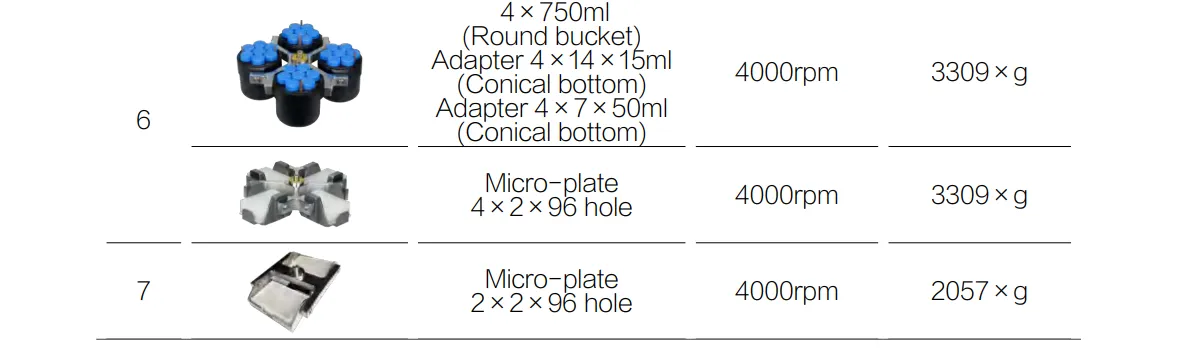

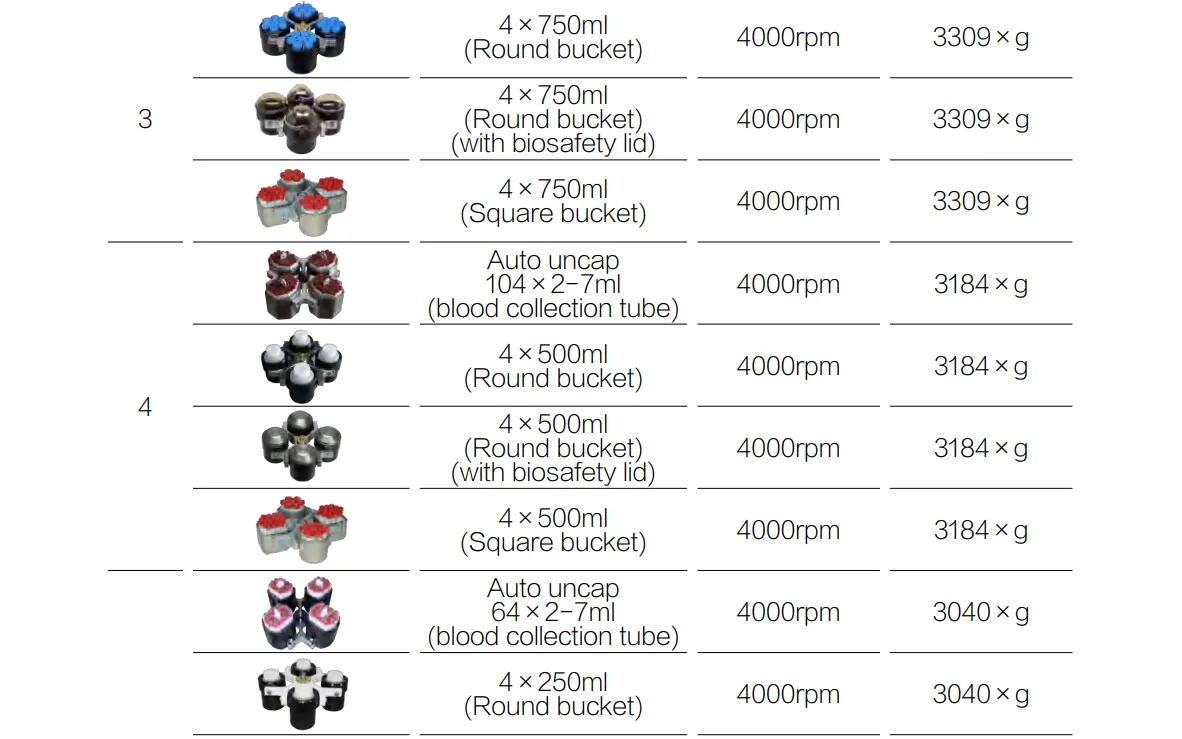

- Max Capacity: 4 × 750 ml
- Timer: 1s to 99h 59min 59s
- Revolutions/min Precision: ±10 r/min
- Voltage: AC 220 ± 22V, 50Hz, 10A
- Power Consumption: 1000W
- Noise Level: ≤ 62 dB (A)
- Dimensions (Size): 460 × 580 × 410 mm
- Net Weight: 61 kg

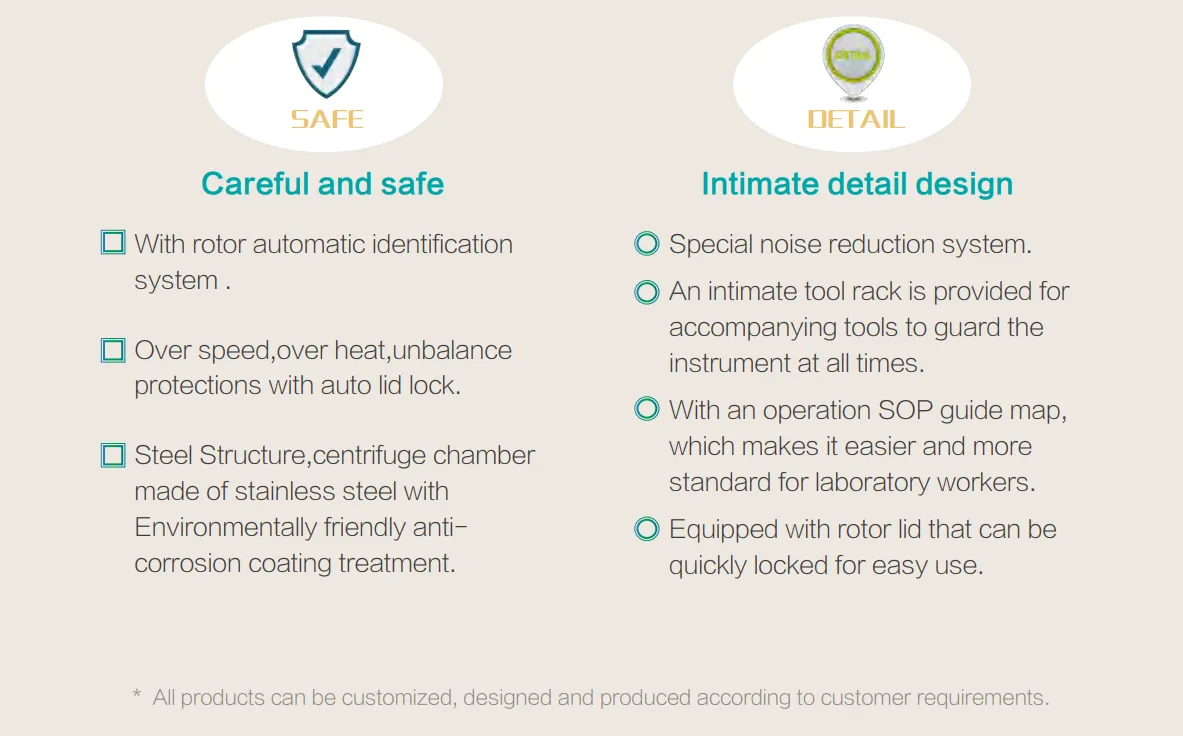

- Rotor Automatic Identification: Yes
Functional Features
Sample Preparation:
The DT45C Low Speed Table Centrifuge is extensively utilized in sample preparation processes prior to various analytical techniques. By effectively separating components of a mixture through low-speed centrifugation, it enhances the accuracy and sensitivity of outcomes. This capability is crucial for obtaining optimized results in chromatographic and spectroscopic analyses.
Operating Modes:
The centrifuge offers users two flexible modes:
- Start Timing: Initiates timing directly upon start-up.
- Arrival Revolution Timing: Begins timing once the selected speed has been reached.

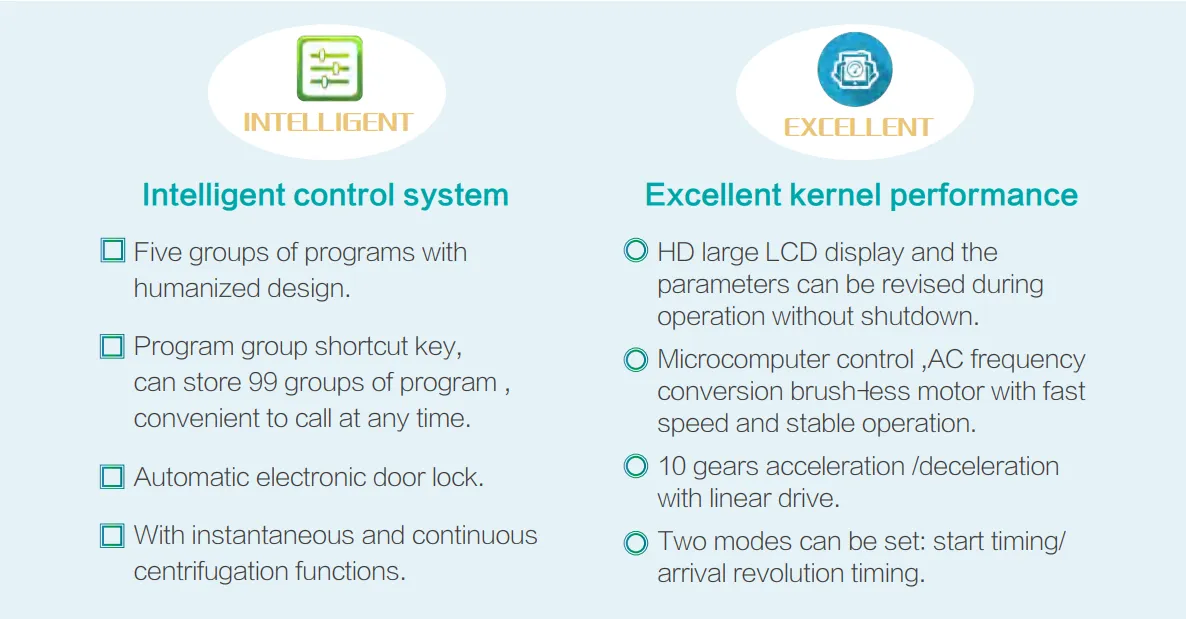

Advanced Control System:
Featuring microcomputer control technology, the centrifuge streamlines operations by allowing users to adjust crucial parameters during the run without the need for shutdown. This flexibility enhances its operational efficiency and usability in dynamic laboratory environments.
High-Definition Display:
Equipped with an HD large LCD display, the DT45C allows for easy visibility of operational parameters. This user-friendly interface is intuitive and supports straightforward input for speed, time, and acceleration settings, making it accessible for all users.
Reliable Motor System:
Utilizing an AC frequency conversion brush-less motor, the centrifuge ensures fast speed with stable operation. This results in significantly reduced vibrations and enhances the longevity of the equipment.
Acceleration and Deceleration:
Offering 10 gears of acceleration and deceleration with a linear drive, the DT45C provides controlled and smooth transitions during operation. This feature helps in reducing sample disturbance during the centrifugation process.
Sample Preparation:
The DT45C Low Speed Table Centrifuge is extensively utilized in sample preparation processes prior to various analytical techniques. By effectively separating components of a mixture through low-speed centrifugation, it enhances the accuracy and sensitivity of outcomes. This capability is crucial for obtaining optimized results in chromatographic and spectroscopic analyses.
Operating Modes:
The centrifuge offers users two flexible modes:
- Start Timing: Initiates timing directly upon start-up.
- Arrival Revolution Timing: Begins timing once the selected speed has been reached.
Advanced Control System:
Featuring microcomputer control technology, the centrifuge streamlines operations by allowing users to adjust crucial parameters during the run without the need for shutdown. This flexibility enhances its operational efficiency and usability in dynamic laboratory environments.
High-Definition Display:
Equipped with an HD large LCD display, the DT45C allows for easy visibility of operational parameters. This user-friendly interface is intuitive and supports straightforward input for speed, time, and acceleration settings, making it accessible for all users.
Reliable Motor System:
Utilizing an AC frequency conversion brush-less motor, the centrifuge ensures fast speed with stable operation. This results in significantly reduced vibrations and enhances the longevity of the equipment.
Acceleration and Deceleration:
Offering 10 gears of acceleration and deceleration with a linear drive, the DT45C provides controlled and smooth transitions during operation. This feature helps in reducing sample disturbance during the centrifugation process.
Applications
The DT45C is particularly suited for a variety of sample preparation applications across multiple fields, including:
Clinical Laboratories:
Useful for the separation of blood components and other biological samples prior to further analysis, thereby optimizing clinical diagnostics.Research and Development:
Essential in academic and industrial research settings for isolating cells, proteins, and other components for experiments that require precision and high-quality results.Environmental Testing:
Ideal for pre-treatment of samples collected from different environments (water, soil, etc.) to ensure accurate analysis of contaminants, nutrients, and other parameters.Pharmaceutical Applications:
Used in drug formulation and stability testing processes that require rigorous sample preparation to ensure safety and efficacy.
Advantages
Increased Throughput:
The DT45C’s ability to process multiple samples simultaneously (up to four 750 ml tubes) increases throughput for laboratories facing high demand for sample processing.
User-Friendly Interface:
The comprehensive LCD display not only enhances user experience but also reduces the learning curve associated with operating laboratory equipment.
Flexibility in Operations:
With the capability of revising parameters during operation, scientists can fine-tune their processes on-the-fly, enhancing the accuracy of their analyses without experiencing downtime.
Robust Design:
Built to endure rigorous laboratory use, the centrifuge is designed with high-quality materials that ensure reliability, safety, and durability.
Low Noise Operation:
Operating at a maximum noise level of only 62 dB (A) makes it suitable for use in noise-sensitive environments such as hospitals or quiet laboratory areas.
Increased Throughput:
The DT45C’s ability to process multiple samples simultaneously (up to four 750 ml tubes) increases throughput for laboratories facing high demand for sample processing.
User-Friendly Interface:
The comprehensive LCD display not only enhances user experience but also reduces the learning curve associated with operating laboratory equipment.
Flexibility in Operations:
With the capability of revising parameters during operation, scientists can fine-tune their processes on-the-fly, enhancing the accuracy of their analyses without experiencing downtime.
Robust Design:
Built to endure rigorous laboratory use, the centrifuge is designed with high-quality materials that ensure reliability, safety, and durability.
Low Noise Operation:
Operating at a maximum noise level of only 62 dB (A) makes it suitable for use in noise-sensitive environments such as hospitals or quiet laboratory areas.
Conclusion
The Low Speed Table Centrifuge DT45C stands out as a reliable, versatile, and user-friendly equipment essential for efficient sample preparation in various laboratory applications. With its innovative features, robust design, and outstanding operational performance, it is the perfect addition to any laboratory seeking to enhance its analytical capabilities and throughput.
Invest in the DT45C today and significantly improve the quality of your laboratory results.
